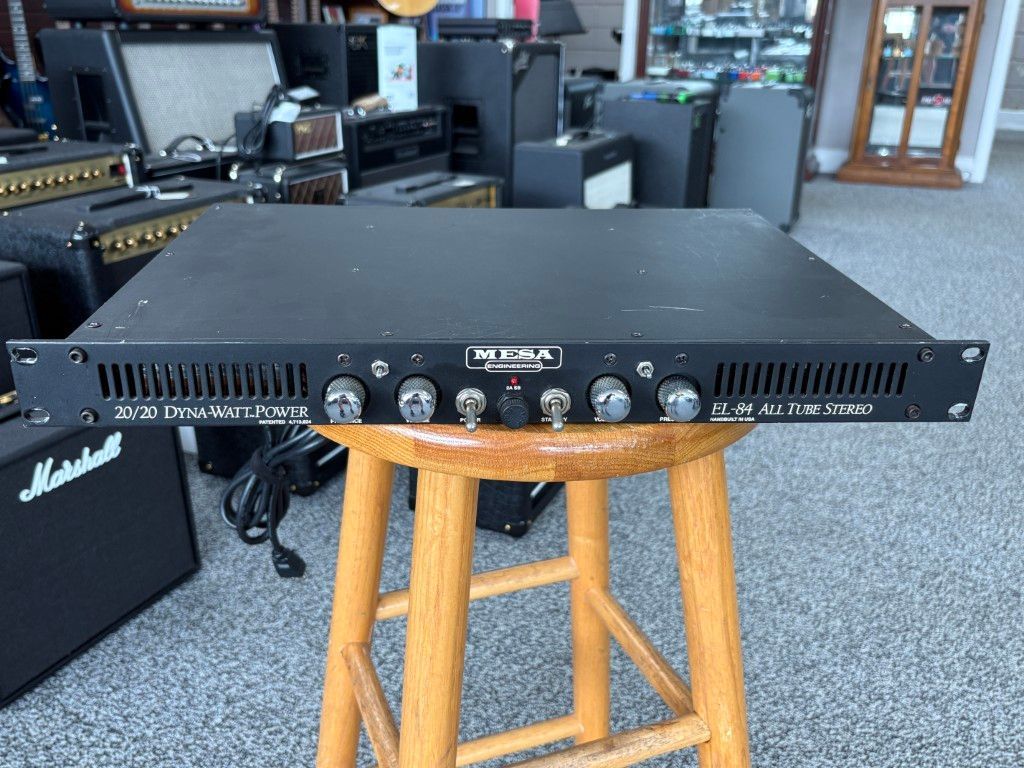

Mesa Boogie 20/20 Dyna Watt Power Amp 1994

Technical Specifications

• Power Output: 20 Watts per channel (Stereo), utilizing Dyna-Watt dynamic boost for increased headroom and punch
• Tube Complement: 4x EL84 (power tubes) and 3x 12AX7 (preamp/driver tubes)Channels: 2 independent channels
• Controls: Independent Volume and Presence controls for each channel
• Bias Type: Fixed Bias
• Cooling: Fan-cooled
• Rack Size: 1 Rack Space (1U)Dimensions: 19" wide x 12.5" deep x 1.75" high
• Front Panel: Power switch, standby switch, and independent volume/presence knobs per channel
• Inputs: 2 independent 1/4" input jacks (one for each channel)
• Speaker Outputs: 6 total speaker outputs (3 per channel: one 8-ohm and two 4-ohm jacks)
• Slave Outputs: 2 stereo slave outputs (one per channel) to capture and route the power amp's clipped tone to another destination
